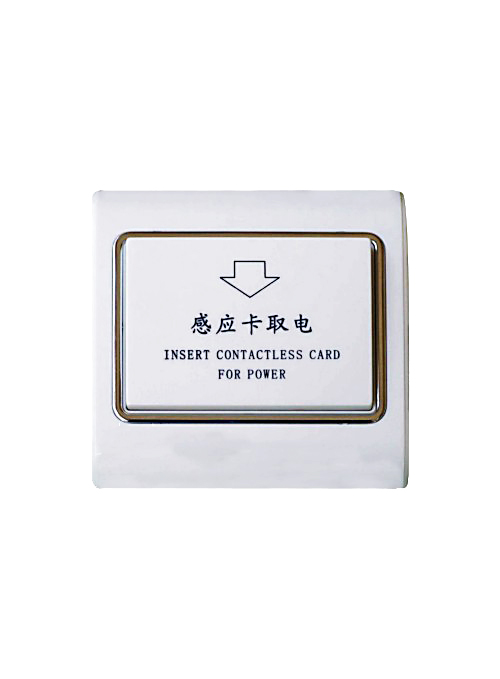

GLJ-331 Take power switch
Materials: PC材料阻燃級(jí)
Size: 86*86
Features: 客房取電
Range: 酒店、賓館
- Take power switch advantage
1. Elegant appearance, the most suitable installation of star hotel;
2. Anti-skid wiring document processing, more reliable, more secure;
3. All components are materials of high quality, mostly of imported components, function stability, long service life;
4. Using special relay, because this type of switch is straight from the relay 220-volt loads, up to 30A output current;
5. General relay will be damaged due to overload or short circuit relay. Our special relays will be better (1 time x) overload capacity
- Check function switch
Hotel energy-saving switch room card technology developed on the basis of all new power supply switching, hotel guests after using the card to open the door, while a card into the hotel's energy-saving switch, main power supply of the energy saving switch hotel rooms;
When they are out, paid out energy-saving switch cards, hotels in around 20 seconds turn off energy-saving switch rooms the total power, so as to achieve the room when someone has power, no interruptions of the energy-saving effect of rooms;
Switch card identification technology, must be valid MF1 HF card inserted in order to take power, other means such as slip and damage the induction card to be able to get electricity, more efficient power supplies;
Parameter index
Operating voltage 50/60Hz 180-260V/110V120V AC 9V12V24V36V DC/1A (the broadband voltage order
Static Power 1W
Delay to turn off 8-20 seconds selectable
50 ℃ work humidity 10-95%RH
Service life of the relay contact in the 220V at full load, life of more than 100,000 times
Operating temperature:-10 ℃ ~ + 60℃
